The Tetravan Shower offers a full showering experience in your van, trailer or RV while using virtually no extra living space.

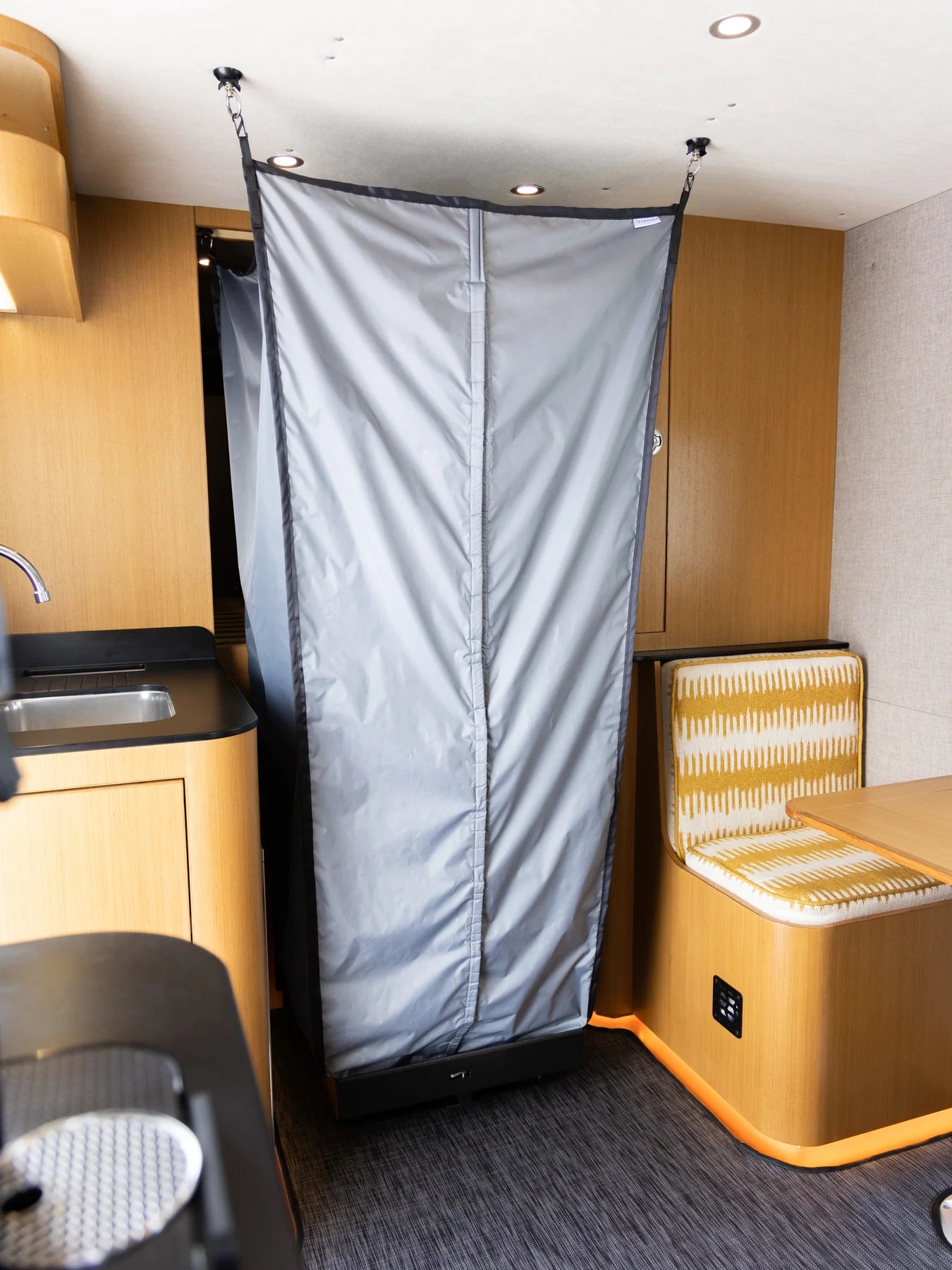

To use it, fold down the shower pan and attach the included magnetic shower curtain. Setting up your shower takes under a minute. After you’re done showering, the shower folds up and out of the way.
Designed and manufactured in the USA.
-

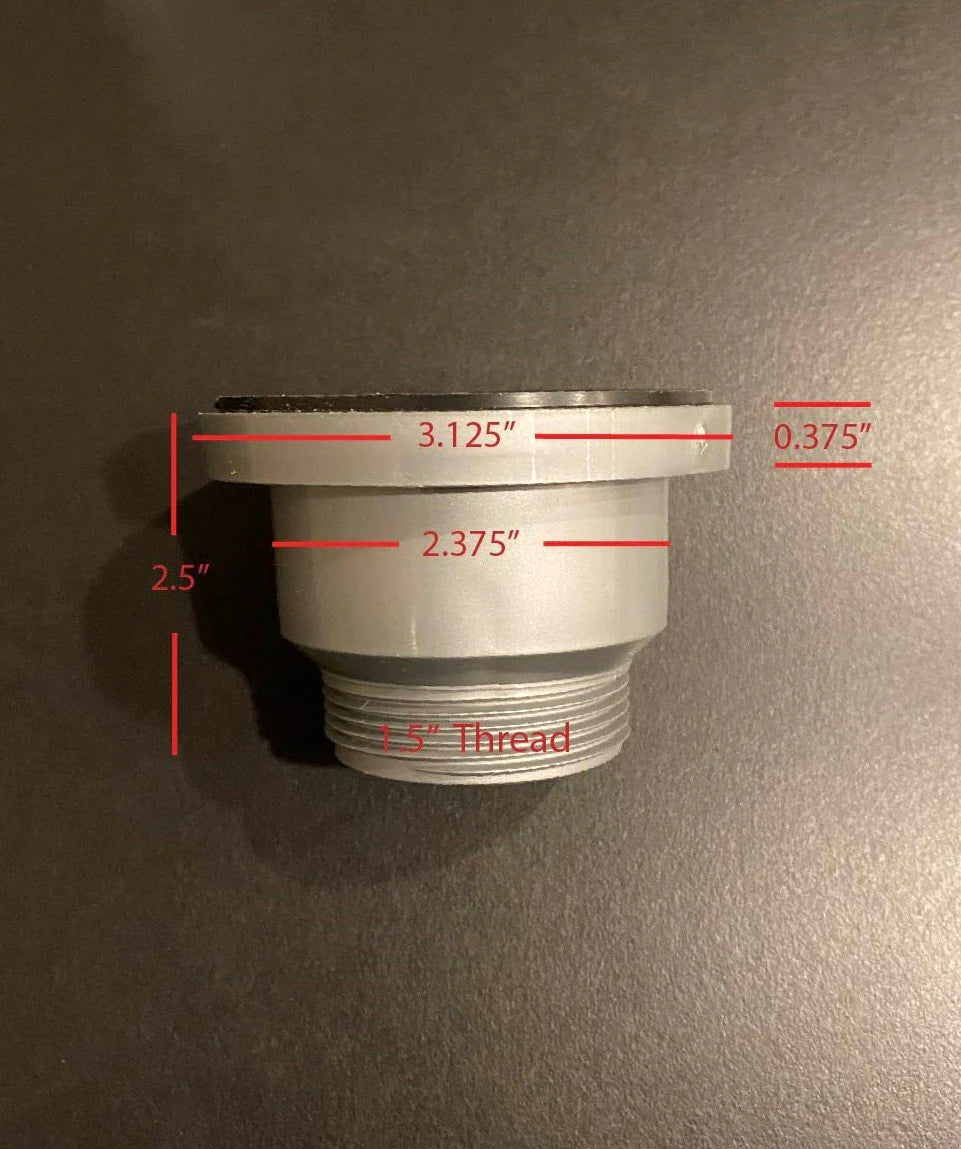

Plumbing Fixtures:The included plumbing fixtures are a stainless steel Queensize Camper adjustable shower head, quick release shower hose, shower head holder, shower valve/mixer, and a Scandvik 1.5” threaded straight drain.
-

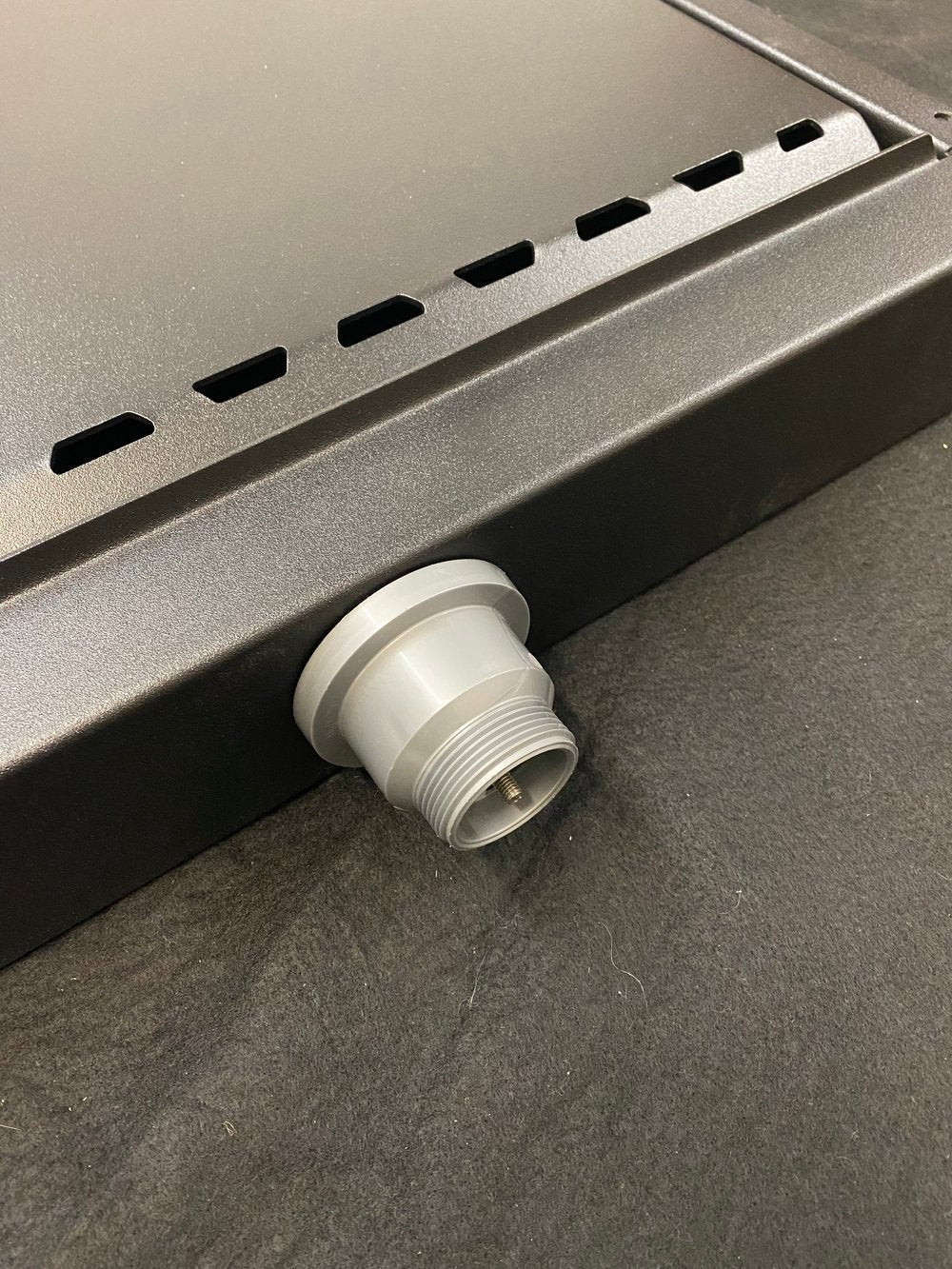

Plumbing Connections: Hot and cold water connections attach via 1/2” NPS-F fittings. Drain accommodates standard 1.5” threaded fitting.
-

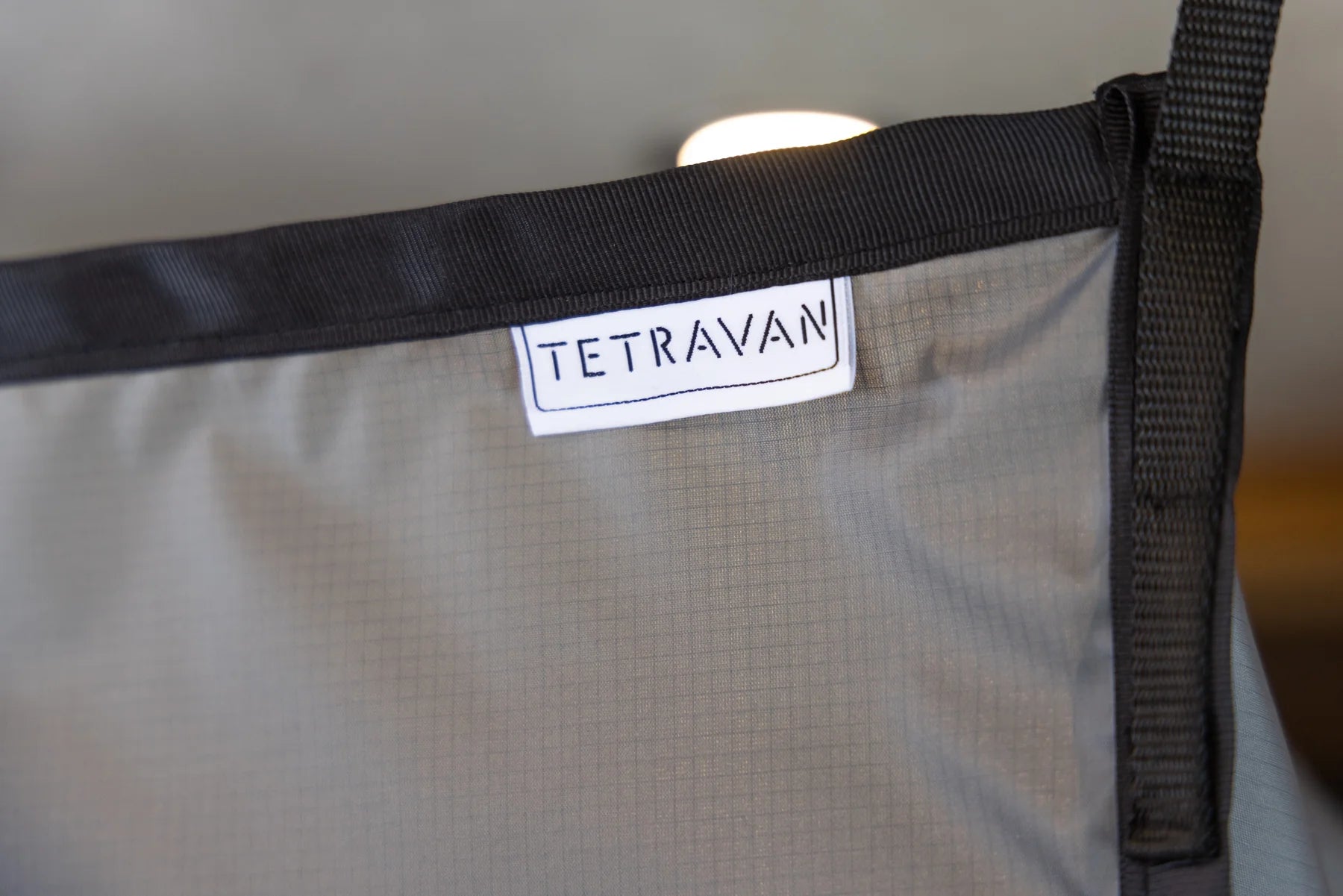

Curtain Materials: The handsewn shower curtain is made out of gray waterproof nylon ripstop, with magnets sewn into the lining.
-
Dimensions: The dimensions of the nested portion of the shower are 21.75” wide by 30.75” tall. The depth is 3.5” but an additional 3.5” behind the back needs to be kept clear for plumbing lines and shower head/hose storage. The dimensions of the outer flange are 23.25” wide by 32.5” tall.
-
Weight: Approx 60lbs
-
Technical Drawing: See here
This shower is designed to be easy to install for both professional and DIY builders.

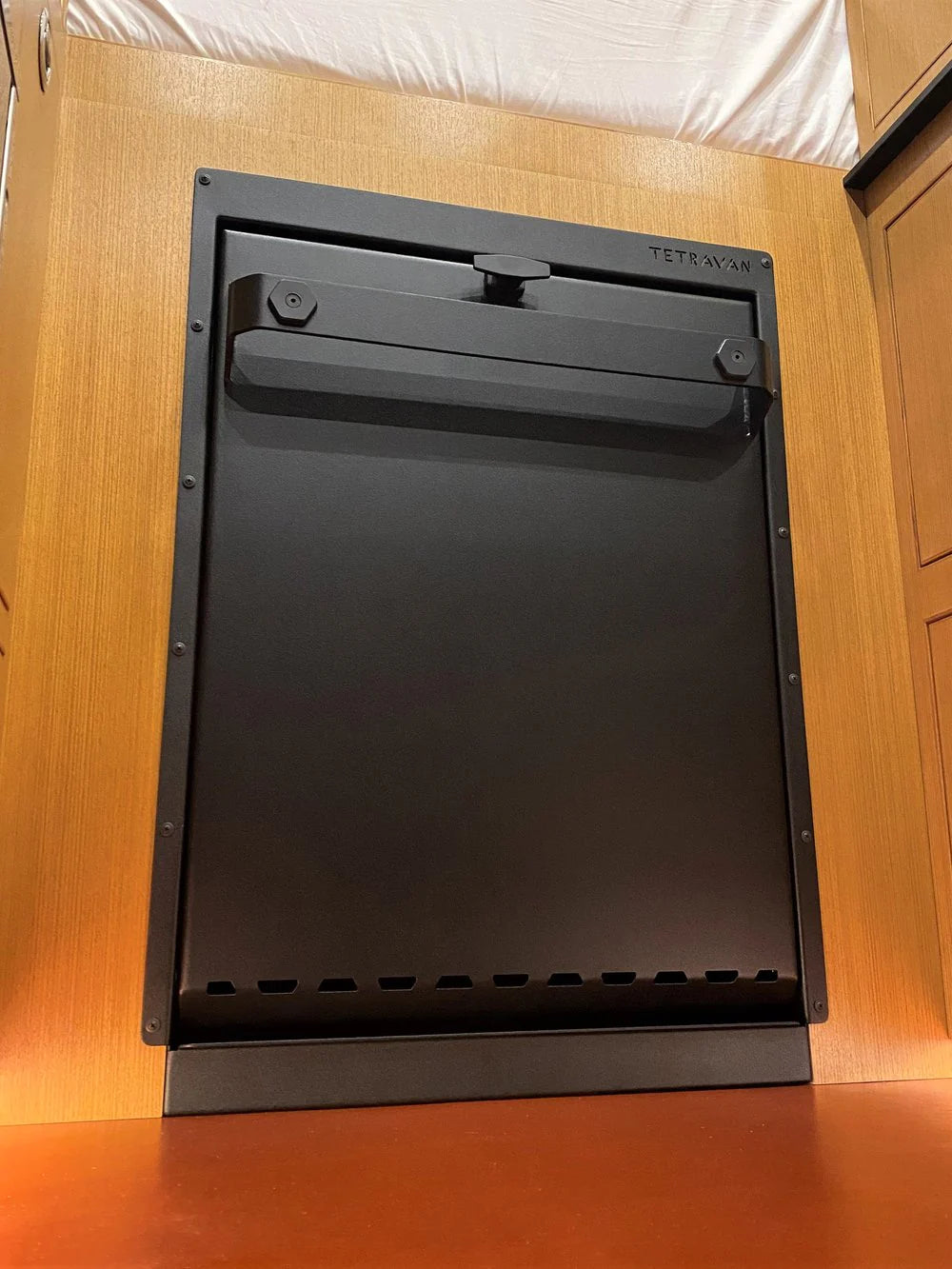

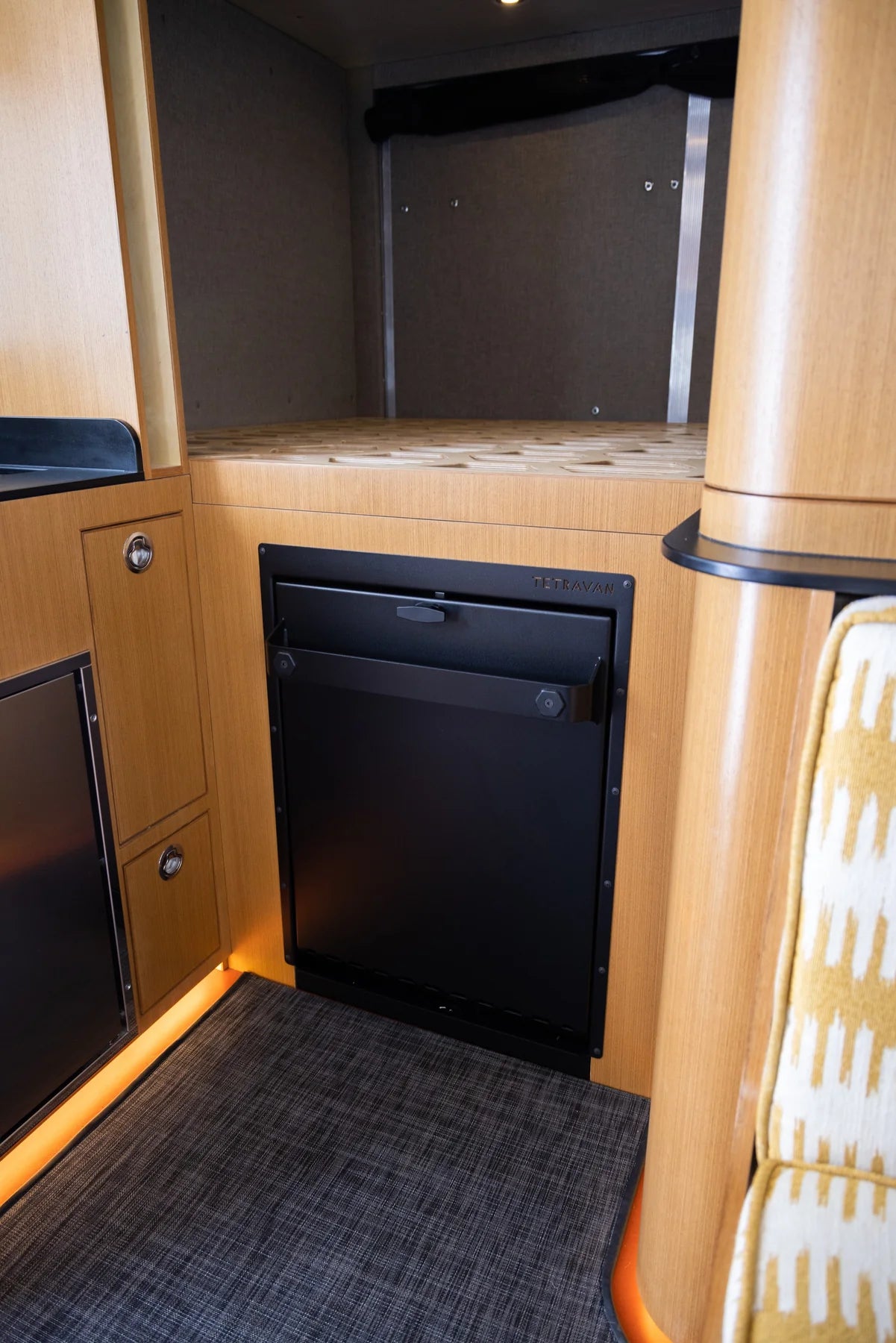

You can flush-mount and install it into a cabinet, a bed-front bulkhead, or an entryway. You need about 7” of depth and 32.5” of height, and the handle will only protrude 2.625” into your living space. The cabinet cutout should measure 21.75” wide by 32” tall, starting from floor level.
The shower is attached via 12 0.25” diameter holes in the flange that can be used with woodscrews (included) or bolts depending on the material you are attaching it to. It is also compatible with 1” 8020 extruded aluminum.
The shower's drain hole must be be drilled through the floor of your van, directly underneath the center of the shower's gutter.
Technical Drawing: See here.
